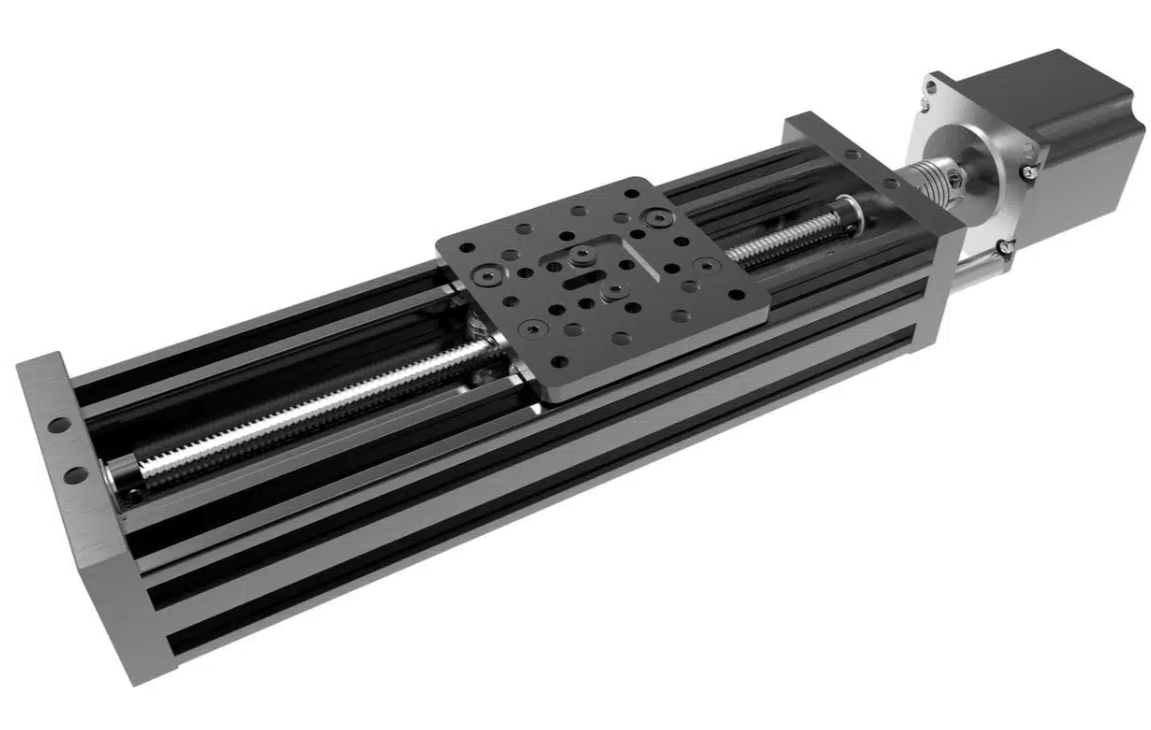

C-Beam Actuator Kit black anodized

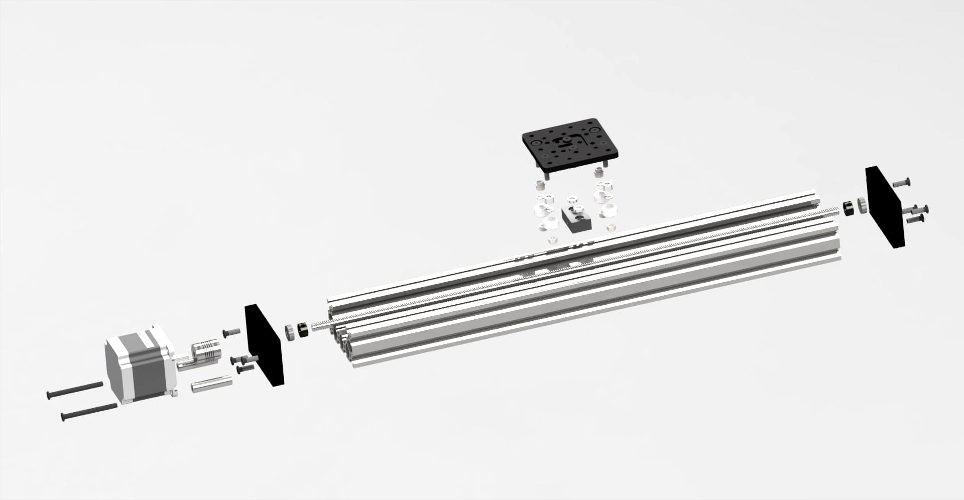

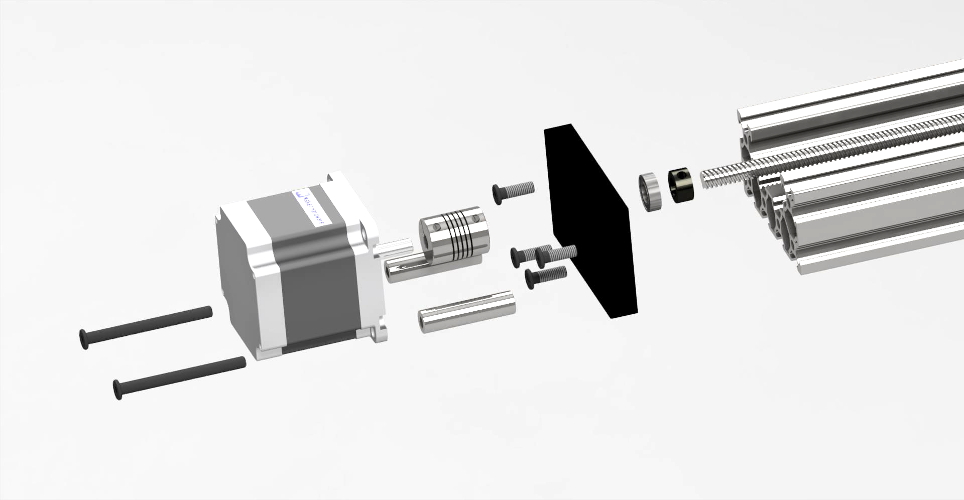

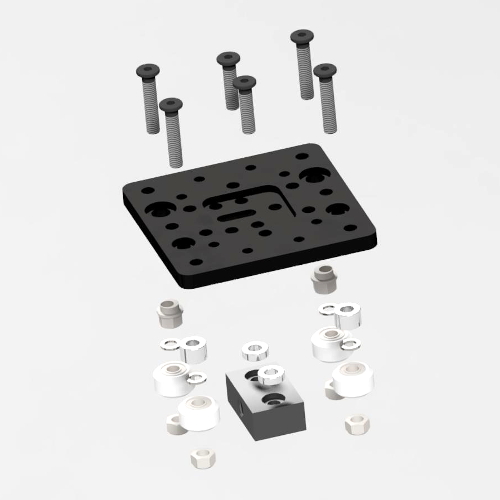

Description The C-Beam Actuator Kit is an actuator driven by our ACME lead screw. The kit is an easy way to get all the pieces needed for the build. Sizes available are 250mm, 500mm, 1000mm and 1500mm.   The kit includes: Product QTY 688Z Ball Bearing – 8x16x5 2 Hardware Pack 1 Nema 23 Stepper Motor 1.26N.m (6.35mm shaft) 1 8mm Metric Lead Screw / ACME 1 Anti-Backlash Nut Block 1 Lock Collar – 8mm 2 6.35mm x 8mm Flexible Coupling 1 C-Beam – 250mm/500mm/1000mm/1500mm 1 C-Beam End Mount 2 C-Beam Gantry Plate Eccentric Spacers – 8mm Hex – 6mm 2 Mini V Wheel Kit 4 Tools required: Allen keys M5 Tap 8mm spanner/wrench   Related
