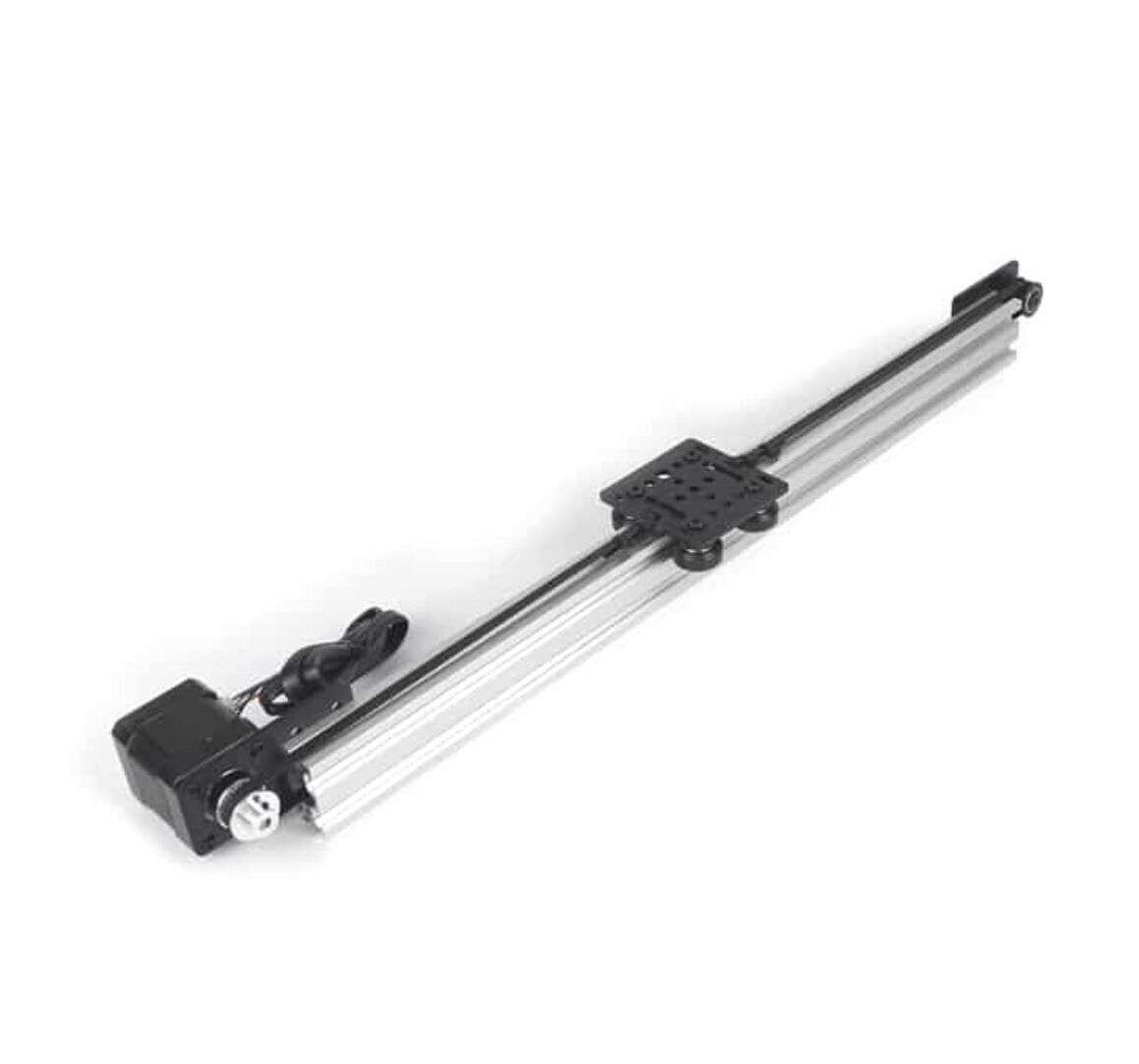

500-2000 mm Belt Actuator Kit

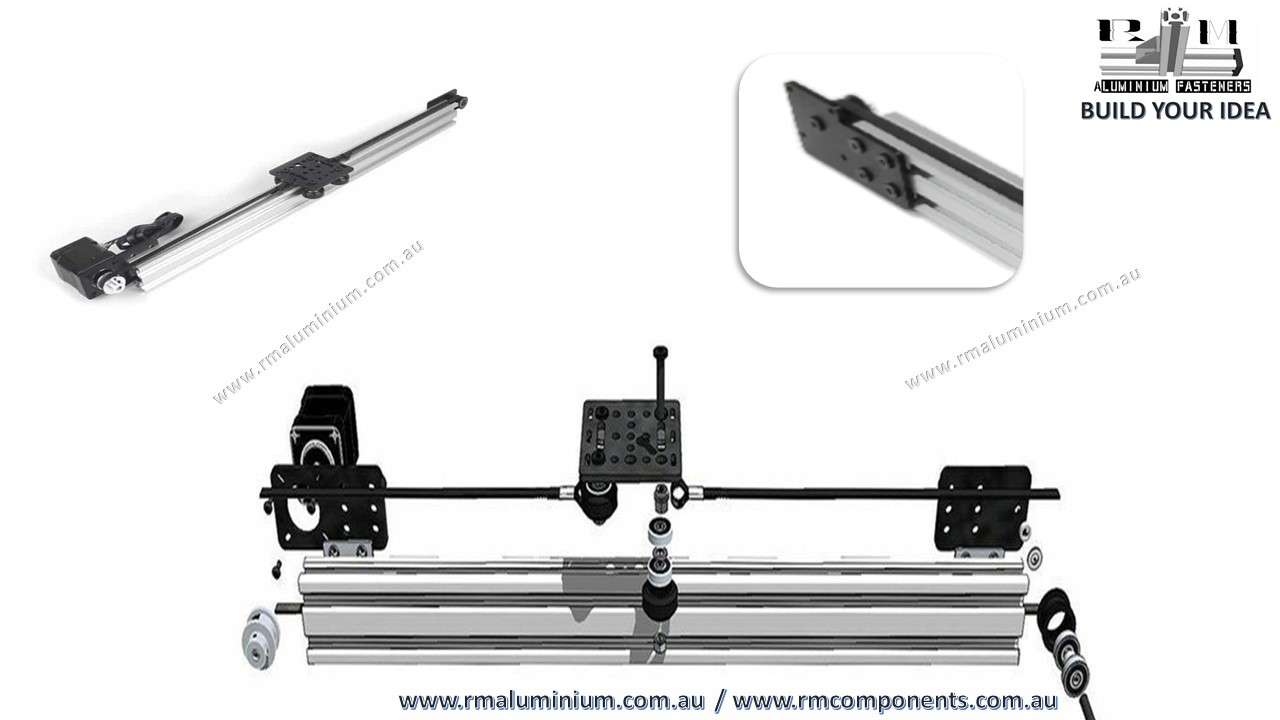

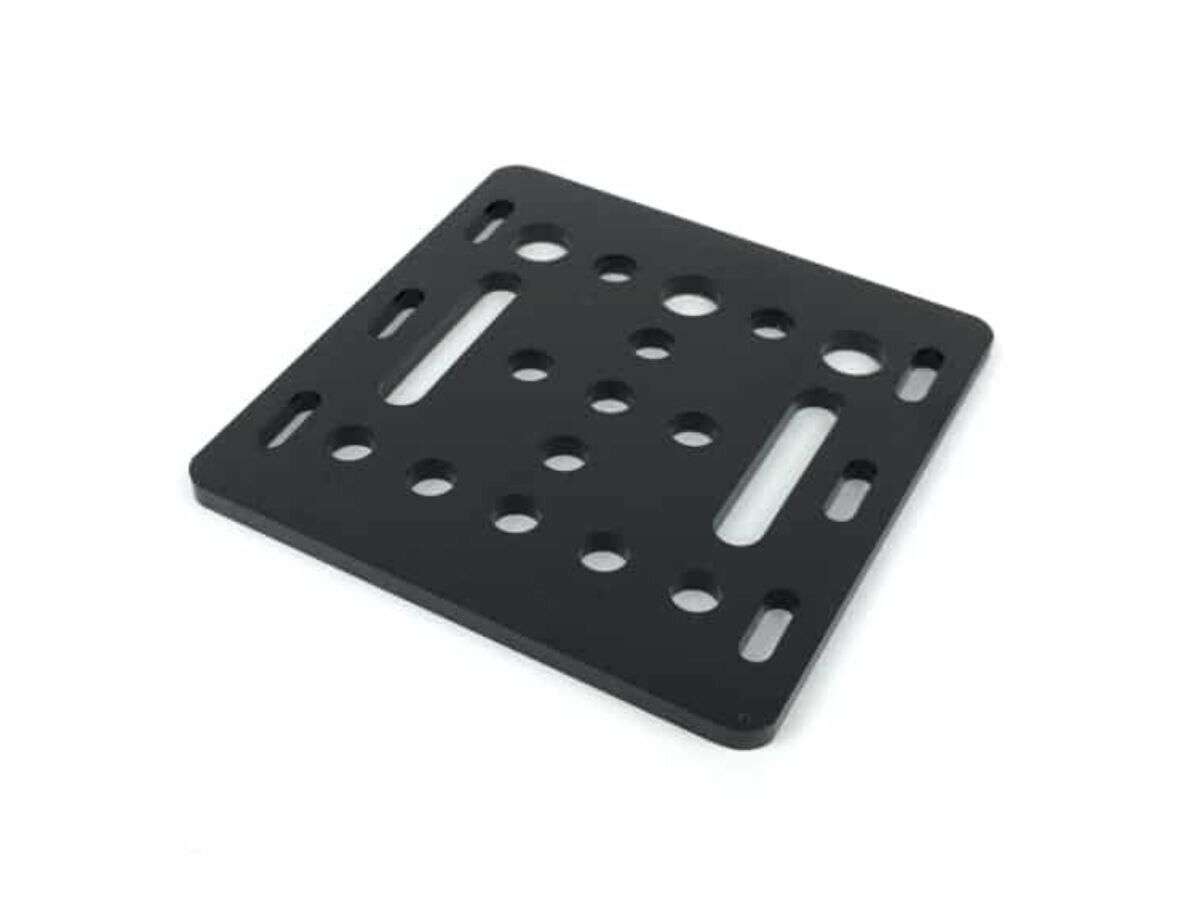

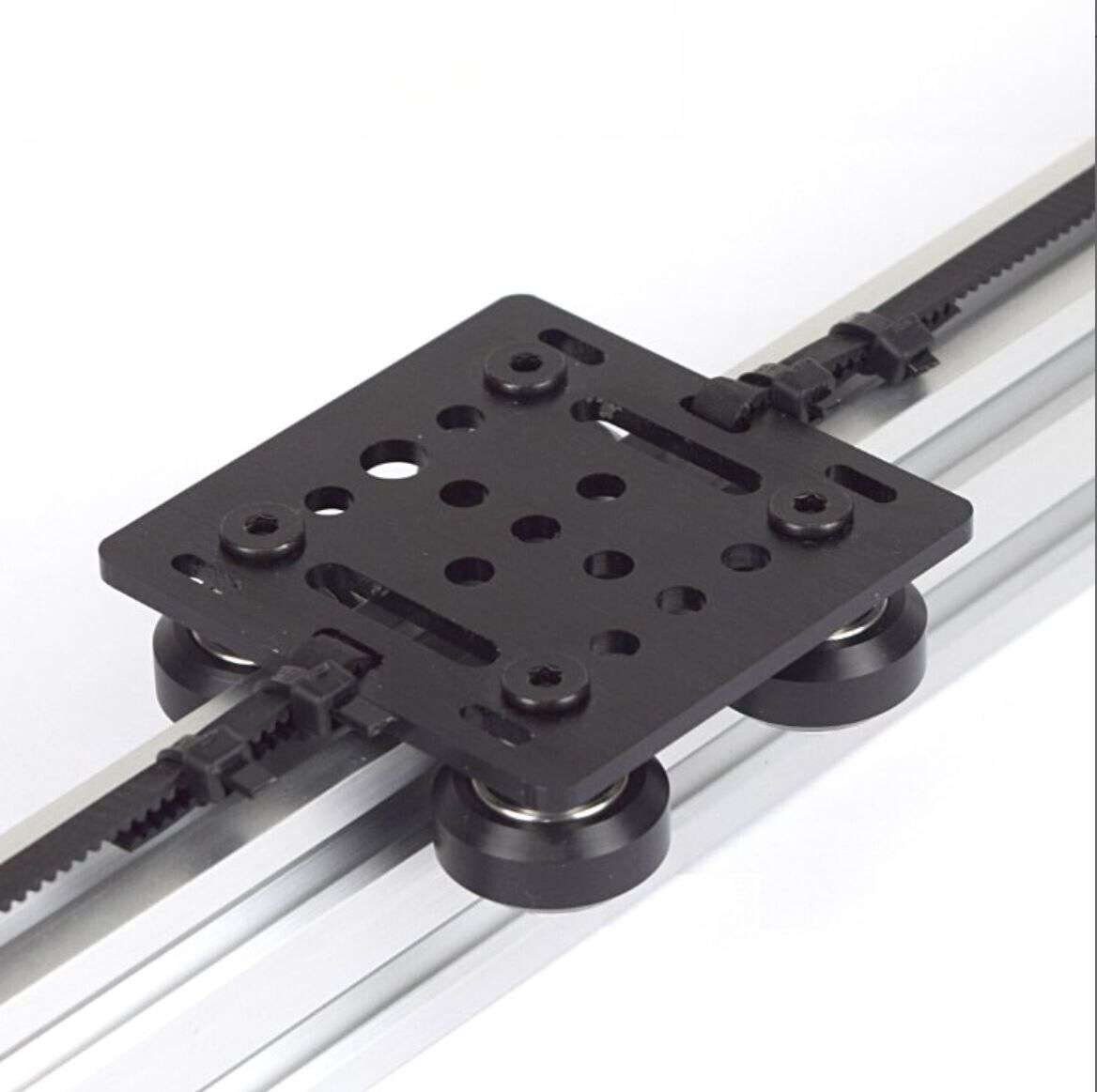

Description 500-2000 mm Belt Actuator Kit provides smooth operation for a Gantry along 20×40 V-Slot Linear Rail. It is both accurate and quick, ideal for Camera Sliders. This kit is an easy way to get all the pieces needed for the build. The kit includes : Item 1X   Neman 17 Stepper Motor 1X  GT2 (2mm) Aluminium Timing Pulley 20 Tooth 4X  Metric Aluminium Spacers – 30mm 1X  Metric Aluminium Spacers – 3mm 4X  M3 Button Head Screws – 35mm 1X  Smooth Idler Pulley Kit  WHEEL-PULLEY-KIT 8X  M5 Low Profile Screws – 8mm 8X  T-Nuts – 1 Piece 2X  Actuator Pulley Plate 4X  Cable Tie – 100mm 1X  20mm V-Slot Gantry Plate 4X  Solid V Wheel Kit 2X  Metric Aluminium Spacers – 6mm 2X  Eccentric Spacers – 8mm Hex – 6mm Height 4X  M5 Low Profile Screws – 25mm 1X  V-Slot 20 x 40mm Silver 3X  GT2 (2mm) Timing Belt (per meter) 1X PDF assembling  Manual Tip: Don’t forget to slide the Gantry onto the V-Slot before you attach both Actuator Pulley Plates. Don’t forget to attach the Timing Pulley to the Nema17B Motor shaft before attaching the Motor to the Plate. Follow this process for correct tensioning the GT2 Belt: Tighten the screws on one Actuator Pulley Plate to secure the Plate in position. Feed the Belt over the Pulleys and through the hollow center of the V-Slot Tie or Clamp the GT2 Belt on both sides of the Gantry Pull the other Actuator Pulley Plate away to Tension the GT2 Belt, tighten the screws on the Plate while it is under tension If you require any other lengths please let us ! Related
