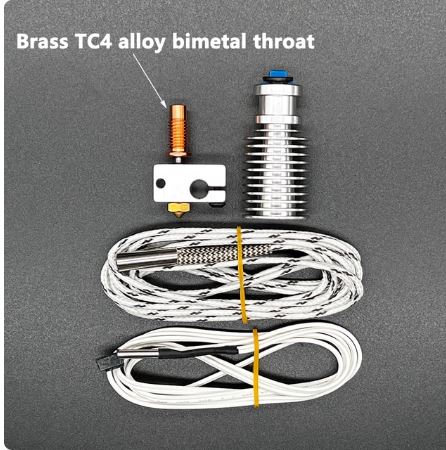

E3D V6 Hotend Kit 3d Printer Accessories 320℃ High Temperature Version J-head Remote Extruder Parts 12V 24V Hot End 1.75/0.4MM

Description Item details Nozzle Size：0.4mm for 1.75mm Fliament. Thermistor：  HT-NTC100K, B3950, 1 meter Heater wire：12V or 24V, 50W, 1meter. V6 Heating Block: Size: 16mm*16mm*12mm Material: 6061 aluminium alloy With HT-NTC100K high temperature thermistor and 40W/50W heater, the maximum  temperature and heating temperature can up to 320 ° ( temperature limit is 320°,  recommend not to use more than 320 °). V6 Throat Tube: Specifications: inner hole 2mm; radiating end threaded M7; heated end M6; total length : 22.4mm Material: 316F / stainless steel Scope: 3D-V6 long distance wire; V6 Heat Cooling Tube: Specifications: connection thread M7 Joint connecting thread G1/8 Feeding hole Φ4.2 (with 4 × 2 Teflon tube PTFE) Installation position Φ12 × 3.7 V6 Nozzle: Dimensions: 12.5mm * 7mm Material: Copper Nozzle Accuracy: 0.2mm, 0.3mm, 0.4mm, 0.5mm (support 1.75mm) Screw outer diameter: 6mm (Metric M6, tooth length 5.5mm, ID 2mm) Machining error is within 0.005mm. Customization is available. V6 Pneumatic Fittings: Inner diameter: 4mm for 1.75mm filament guiding tube – ID2mm OD4mm PTFE tube use Thread: 1/8″ Product specification Voltage: 12V/24V Power: 50W Heating head size: 6 * 20mm Heating head material: 304 stainless steel Line length: 1M Line thick: 0.5 mm⊃2; (The cross section of the copper wire inside the heater is 0.5mm⊃2;) Color: as shown in the picture Heating temperature: up to 350 degrees Model: HT-NTC100K thermistor temperature sensor component Specifications: Negative Temperature Coefficient (NTC) Thermistor Type: B3950 XH2.54 Terminal Temperature measurement head size: 3 * 15mm No need to change the firmware program to directly replace the original thermal resistor Thermistor temperature measurement is stable. The temperature measurement of the upgraded HT-NTC100K can be up to 320 degrees, can effectively replace the K-type thermocouple. It helps much to solve the issues of strict requirements of K-type thermocouple wiring, and the line is long which is susceptible to get external interference and result in temperature fluctuation that can affect the printing quality. The improvements compared to the other temperature resistance in the market. 1. Upgrade from the original ordinary temperature probe directly exposed temperature measurement to resistance package temperature measurement. Temperature measurement head cylinder diameter 3mm, length 15mm, can be used with the heating block that support the thermocouple. 2. The temperature measurement range is increased from -50 ℃~ 250℃ to -50 ℃ ~ 320 ℃. It helps a lot to print high-temperature filament, can replace the original K-type thermocouple temperature. If need to print high-temperature filament, the HT-NTC100K thermistors are highly recommended. 3. The new version of HT-NTC100K temperature measuring thermistor adopts 304 stainless steel, with the internal temperature package to ensure the maximum service life with precision temperature measurement. 4. HT-NTC100K thermistor adopts white high-temperature cord, can bear higher temperature. And for customers’ convenience, the wires adopts line connection, the customer can tear the wires depends on their application. The high temperature line is double thicker than others in the market, not easy to break off. 5. Supports the customization of different specifications, including the temperature head cylinder size, length of the wires (MOQ is 100 sets). 6. Can be used with the new version of the heater (the new heater can heat up to 350 degrees). Related
