Module 1.0 Gear Rack – Internal

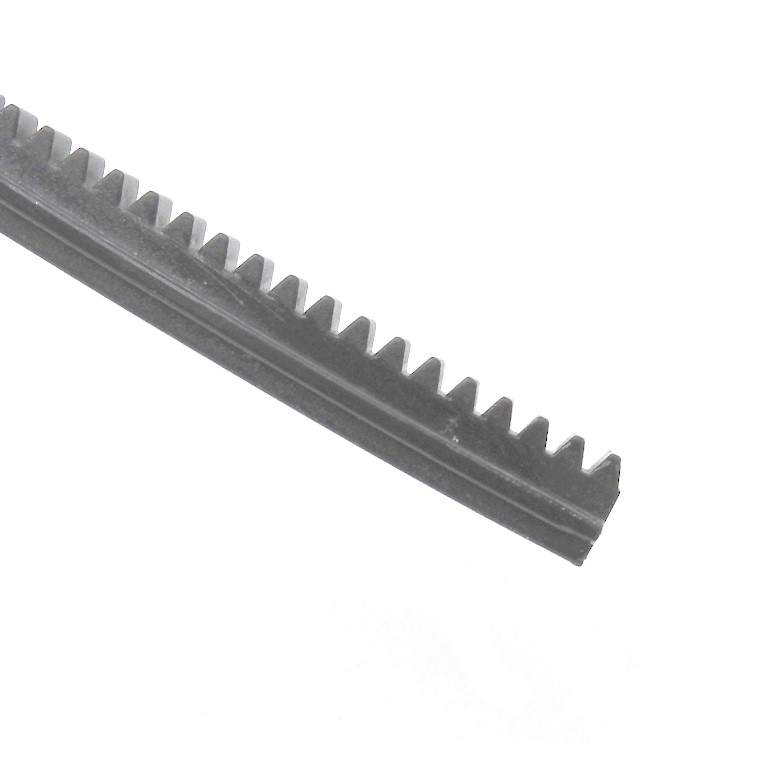

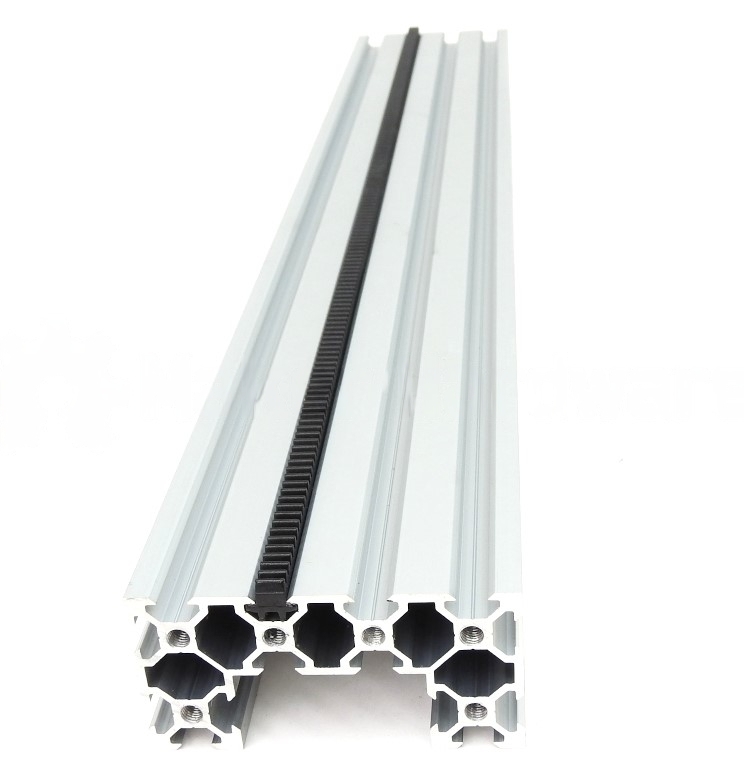

Description AT LAST A RACK AND PINION SYSTEM FOR V-SLOT! The Internal Gear Rack is designed to slide inside the channel of our V-Slot Linear Rail and works with all our different V-Slot profiles. Simply slide the gear rack into the V-Slot Channel and secure it in place using a T-Nut and Bolt on each end. The Internal Gear Rack is the perfect replacement transmission to a lead screw and nut block system or a belt and pulley system. Take a look at our External Gear Rack as well! Specifications: Material: Polyoxymethylene (POM), also known as Delrin Gear type: Module 1.0 Tolerance: DIN ISO 2768 (Fine) Colour: Black Fixing Type: Insert   Pro Tip: The Gear Rack also works with a standard 20mm profile T-Slot. Butt join multiple lengths to make an actuator any size you want. To avoid dust and other materials from getting in-between the teeth of the rack, mount the rack facing down Please note: The gear rack is approximately 499mm in length and is designed to be compressible. You can add a Sliding T-Nut on both ends of the extrusion to ensure a tight fit. For butt joining the racks, you may apply a small drop of glue on both ends of the rack and then add a Sliding T-Nut on both ends of the extrusion. Price $/1pc Related
